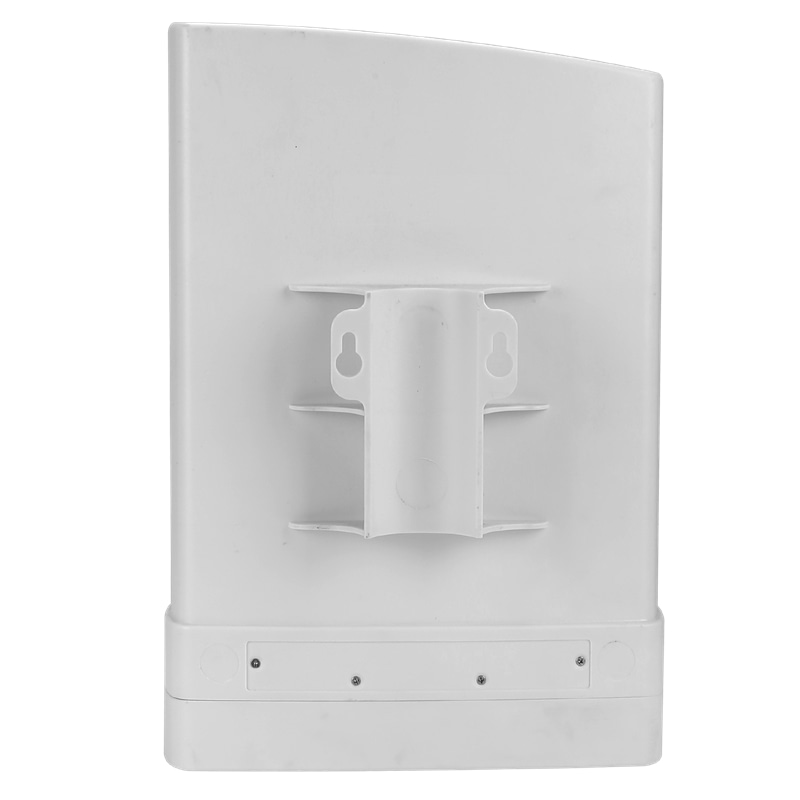

2.4 Ghz omnidirectional Active Reader QW-202

Product introduction:

2.4GHz omnidirectional reader QW-202 operates at 2.45GHz (ISM band) and uses a high-end RF SOC chip with advanced anti-protectionCollision algorithm, with strong anti-interference, without manual participation; It has functions such as automatic identification, tracking, positioning, and collection. 2.4GHz omnidirectional reader QW-202 is ideal for outdoor applications and can be widely used in livestock monitoring, logistics tracking, commodity inventory,Goods sorting, vehicle management, personnel management, asset management, medical systems, cold chain management, power monitoring and production process control and other applications.

Product features:

1. The tag recognition distance is long, and the effective visual recognition distance is more than 200 meters;
2. Strong multi-tag recognition ability, up to 200 shots/second;
3. Up to 2000 label data cache capability, data loss without loss;
4. Rich wired data interface, support 10M/100M adaptive network port (support POE power supply), RS232, RS485, Weigand;
5. Wireless data interface supports 4G, WIFI data transmission, with GPS positioning function;
6. Wide voltage power supply, DC 9V~24V;
7. Support online and offline working modes such as command, automatic, trigger card reading;
8. Waterproof grade IP65, small and beautiful appearance, easy installation;
9. Provide demo software and SDK;
10. Support serial port and network port upgrade;

Product parameters:
