Small Size Black Color 2.4Ghz active Tag QW-T09
Description

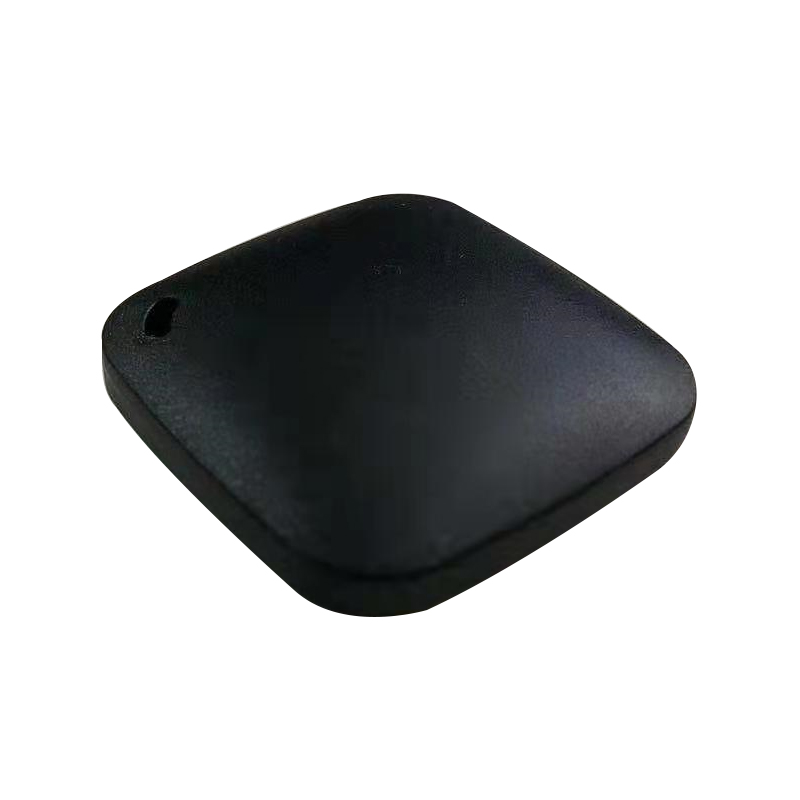

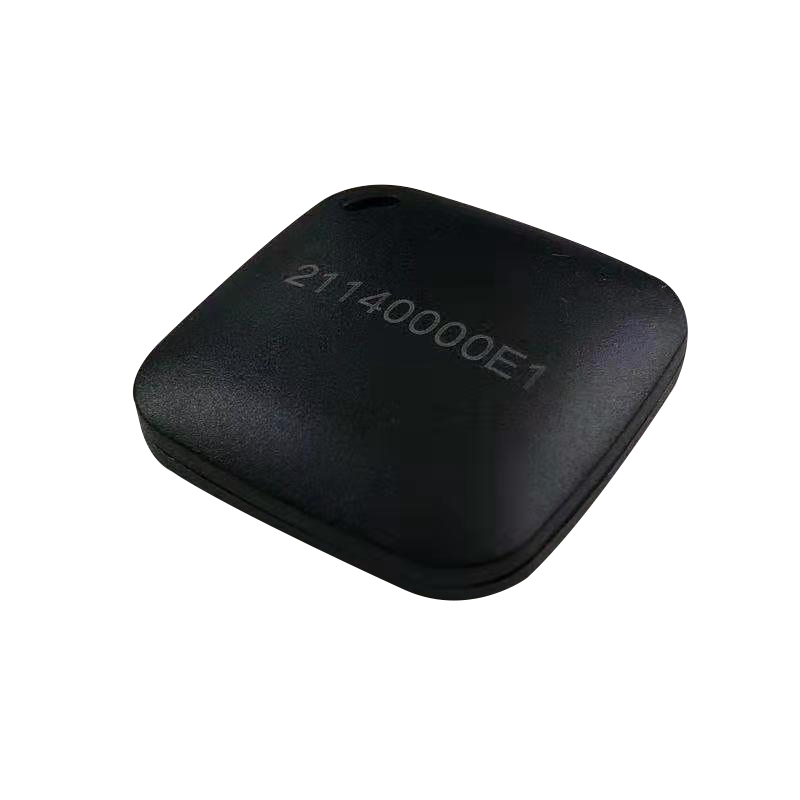

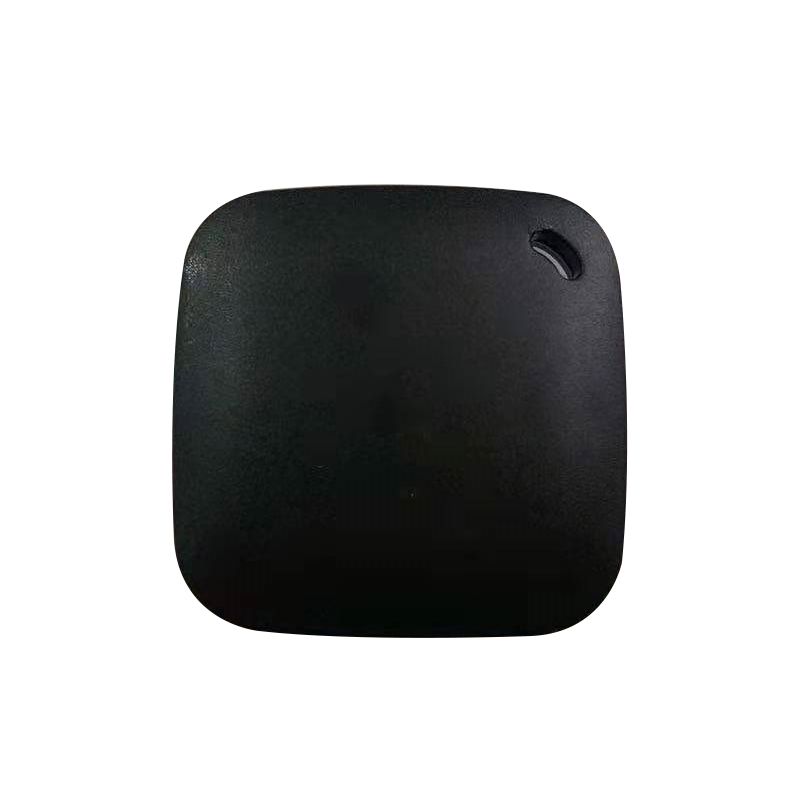

Small Size Black Color 2.4Ghz active Tag QW-T09
Product Introduction:
2.4GHz active tag QW-T09, with ultra-low power consumption design, longer tag life; Effective visual recognition distance of more than 200 meters; Simple structure, small, lightweight, easy to install and carry; Frequency hopping working mode, strong anti-collision and anti-interference ability. It can be widely used in logistics tracking, commodity inventory, cargo sorting, vehicle management, asset management, medical system, cold chain management, temperature monitoring, power monitoring, anti-counterfeiting system and production process control and other applications. Multiple applications
Product Feature:
- Ultra-low power consumption design, longer service life;
- The effective visual recognition distance is more than 100 meters;
- Frequency hopping working mode, stronger anti-collision and anti-interference ability;
- Ultrasonic packaging process, waterproof up to IP54;
- Small and lightweight, easy to wear;
Product Parameters:
| RF parameters | Working Frequency | 2.4GHz～2.5GHz | Electrical parameters | Battery type | CR2032 |
| Modulation | GFSK | Quiescent current | <1uA | ||
| Communication Rate | 1Mbits/S | Transmit current | <20mA | ||
| Transmit power | 0~7dBm | service life | 1~5 year | ||
| Read Distance | ＞200 m | Battery Replaceable | No Repalceable | ||
| Environment Parameters | Working Temp | – 20℃ to +60℃ | Physical parameters | Size (L*W*H) | 33*33*10mm |
| Storage
Temp |
– 40℃ to +80℃ | Weight | 7.5g | ||
| Operating humidity | 5% ~ 95%
(No condensation) |
Material | ABS | ||
| IP Grade | IP54 | Color | Black |
