2.4Ghz Active RFID Handheld Scanner QW-835
Description

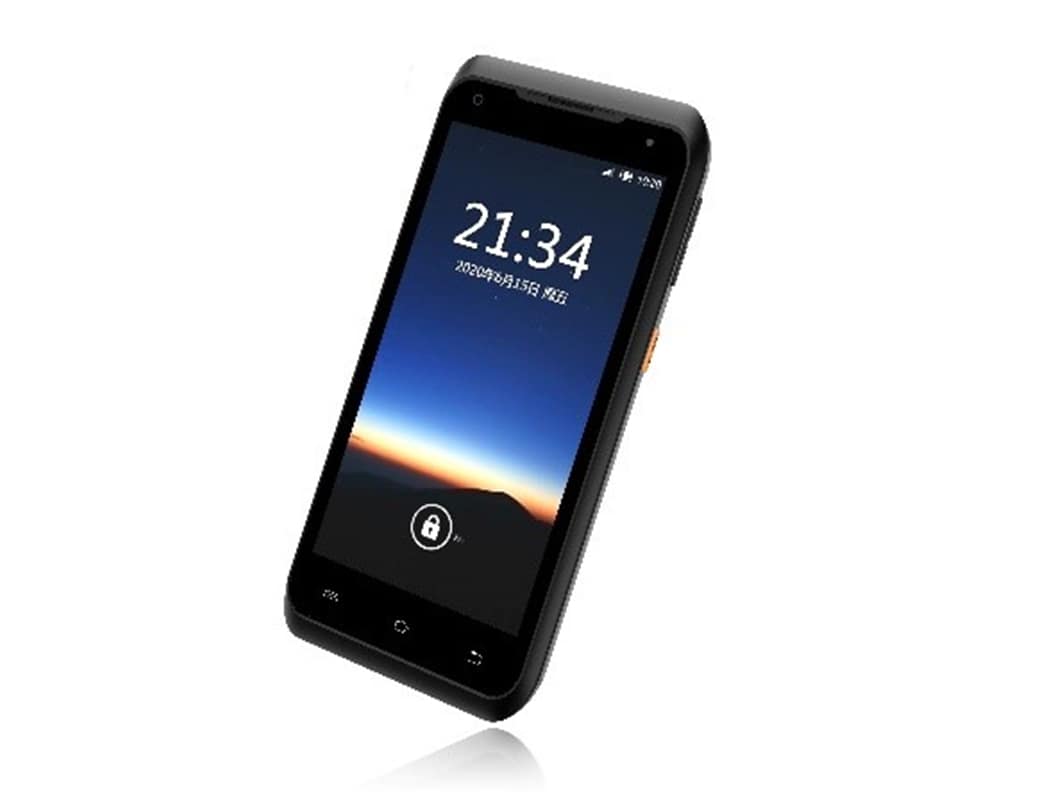

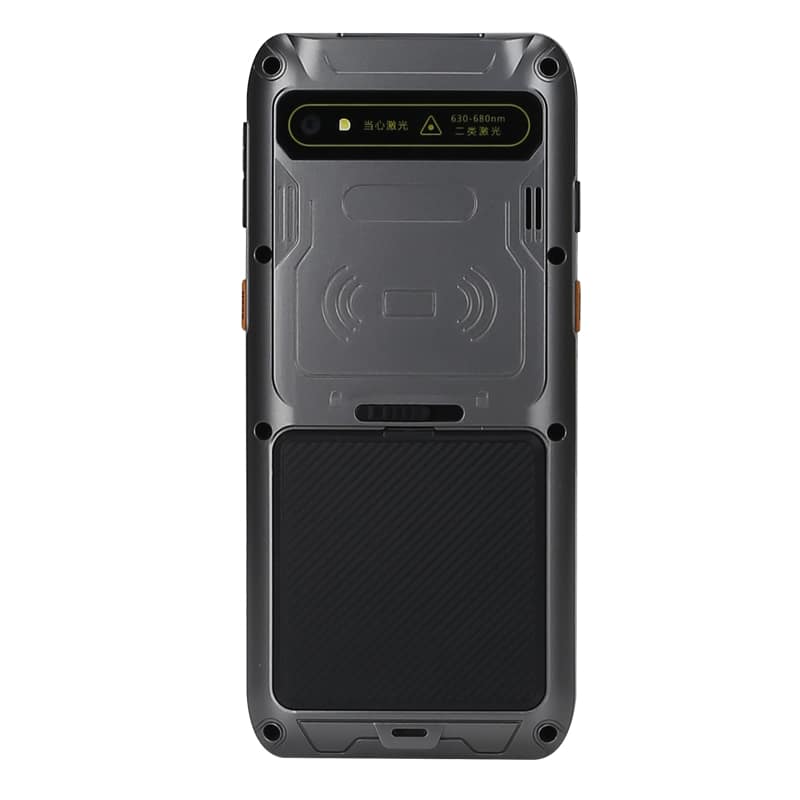

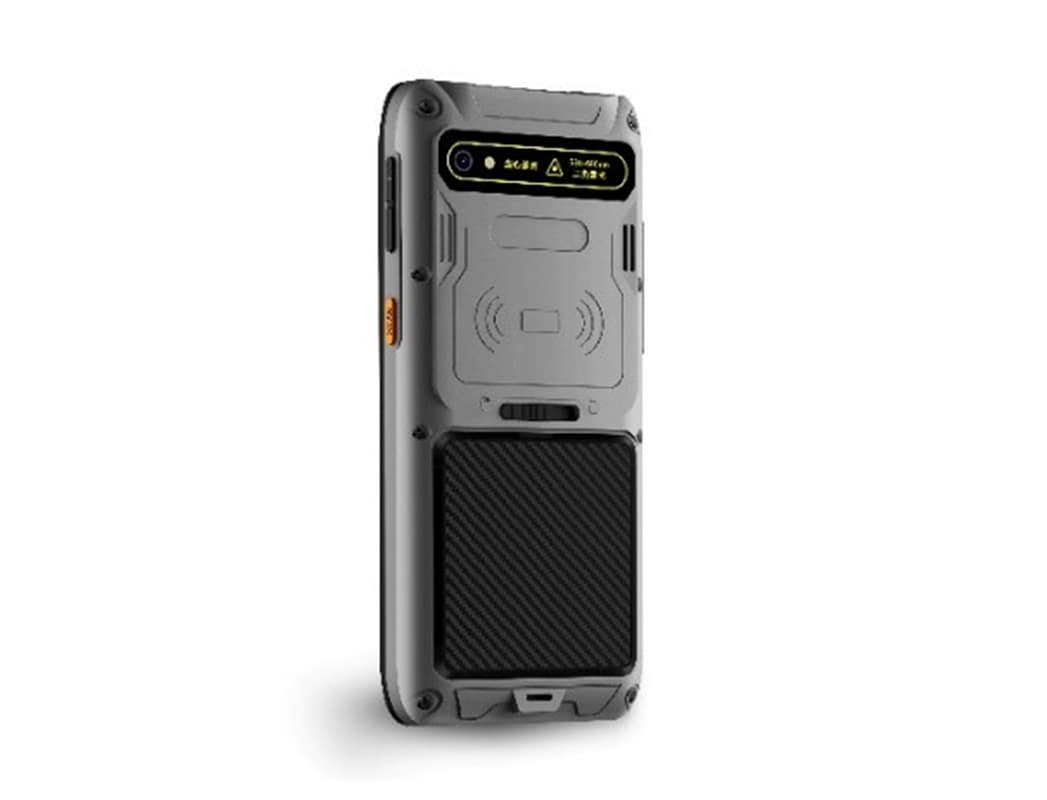

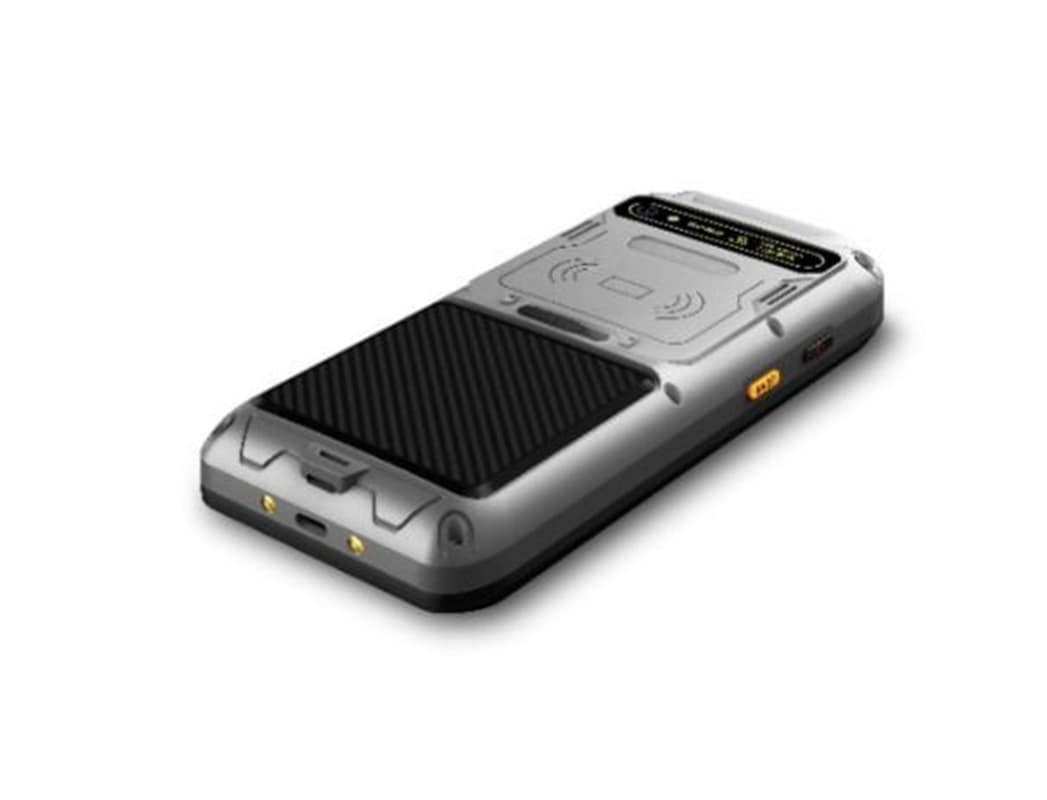

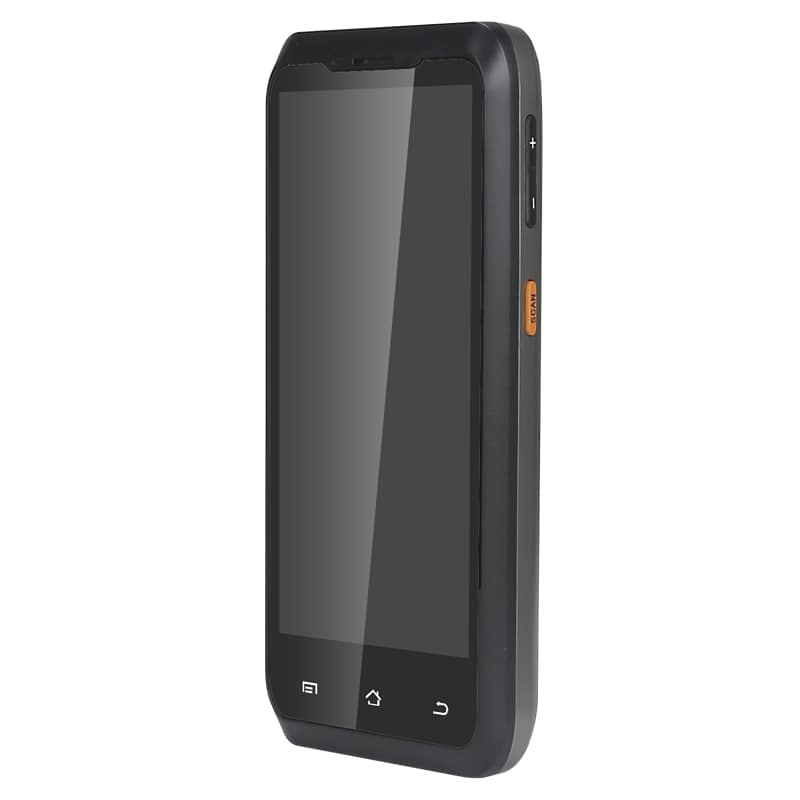

2.4Ghz Active RFID Handheld Reader QW-835
Product introduction:
The QW-835 is a 2.4GHz handheld devices with 4G full Netcom support. Moreover, it can flexibly configure optional functions including 2.4GHz communication, 1D/2D barcode scanning, fingerprint recognition and ID card recognition. Thereby, it fully achieves high integration and freely customizable features for handheld devices.
In addition, it supports wireless communication functions such as WiFi and Bluetooth, so as to meet application requirements in complex working environments.
Besides, the device is also compatible with an RFID scanner, which further extends its application scope.
Therefore, it is widely apply in scenarios such as logistics tracking, commodity inventory, cargo sorting, vehicle management, personnel management, asset management, medical systems, cold chain management, temperature monitoring, power monitoring, anti-counterfeiting systems and production process control.
Product features:
- This device features a 2.4G active tag with an effective line of sight recognition distance of over 200 meters.
- 4G full Netcom, runs Android 8.1, and uses a 64-bit octa core 2.0GHz high-performance processor with 2GB RAM and 16GB ROM to run multiple tasks smoothly.
- 5.5-inch IPS color display at 720×1440 resolution with multi-touch. Users can operate the screen with wet hands or gloves.
- GPS, Galileo, Glonass and Beidou. Its built-in 4500mAh lithium polymer battery lasts more than 12 hours on a full charge.
- 13MP rear HD camera and supports autofocus, flash, anti-shake and macro shooting.
- 1D and 2D barcode scanning.
- NFC, complies with ISO14443A/B and 15693 protocols, and supports 2cm–5cm read-write distance.
- configure different modules per customer requirements and install customer-provided modules to meet various industry needs.
- optional fingerprint recognition and ID card reading functions to meet industrial personnel identification and recording demands.
- IP66 protection level
Product parameters:
| RF parameters | |
| Working Frequency | 2.4GHz～2.5GHz |
| Modulation | GFSK |
| communication rate | 1Mbits/S |
| Receiver sensitivity | -93dBm |
| Antenna direction | directional |
| Antenna Gain | 3dBi |
| Read Speed | >200m |
| System Performance | |
| CPU | Quad-core 64-bit Coretex-A53 clocked at 1.3GHz |
| Memory | RAM：2GB ROM：16GB |
| Operating System | Andiroid 8.1 |
| Keyboard | Touch screen |
| Display | 5.5 inch HD screen |
| Electrical parameters | |
| Battery capacity | 4500mAh lithium polymer battery |
| Standby time | 320 hours standby time ，wireless communication and other functions are turned off |
| Working time | More than 12 hours (full charge once) |
| Physical parameters | |
| Working Temp | -20℃ to +60℃ |
| Storage Temp | -40℃ to +80℃ |
| Working humidity | 5% ~ 95% (no condensation) |
| Dimensions (R x D) | 170*78*23mm |
| Weight | 0.4kg |
| Material | ABS |
Related products
2.4Ghz RFID module QW-M230
2.4G Active RFID Reader Module QW-M240
2.4 Ghz Active RFID Handheld Reader QW-830

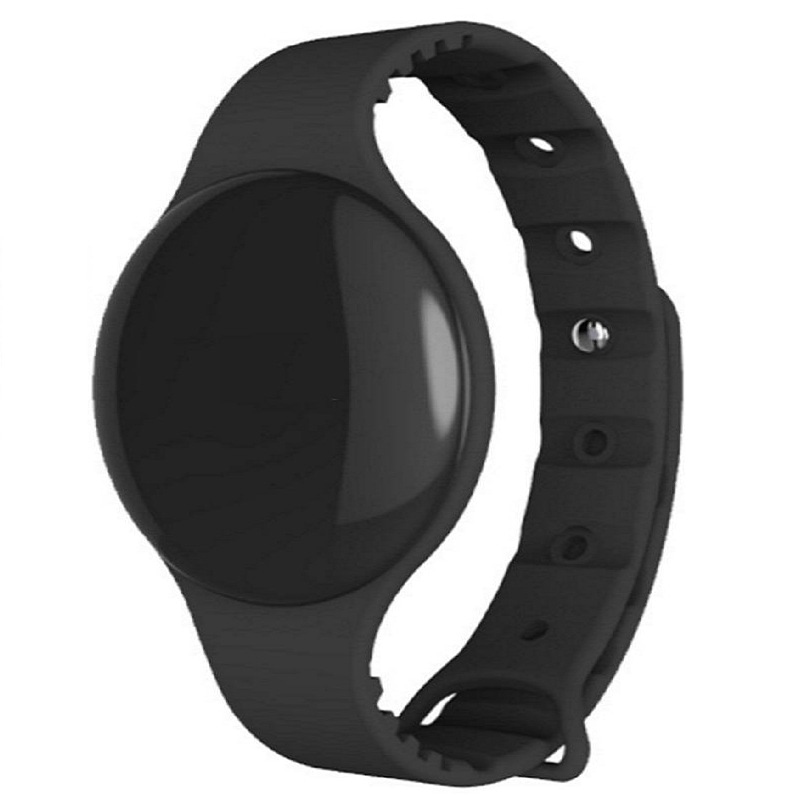

2.4Ghz wristband Tag QW-T11
