Description

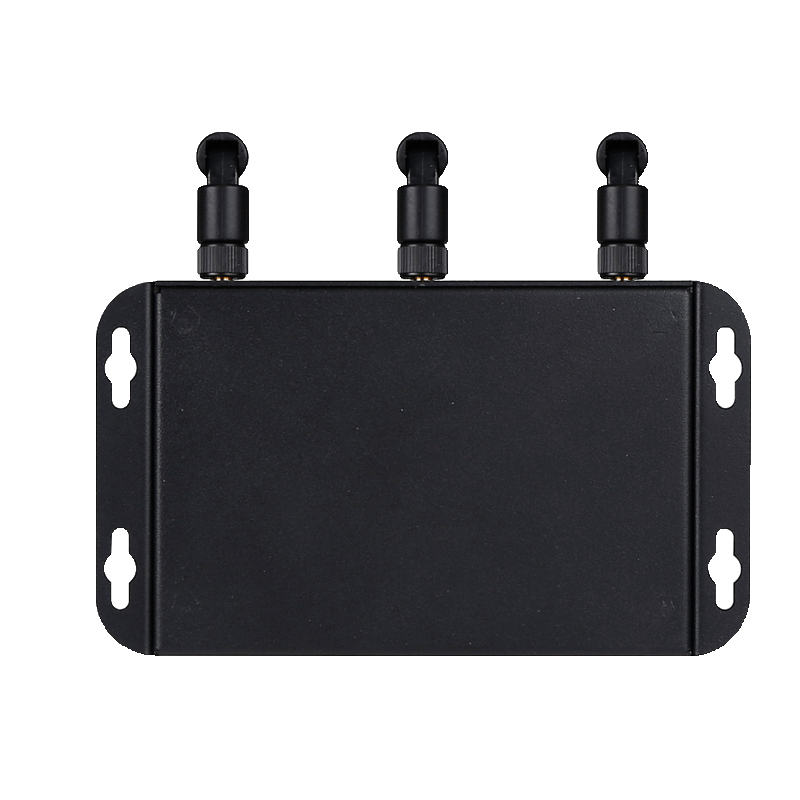

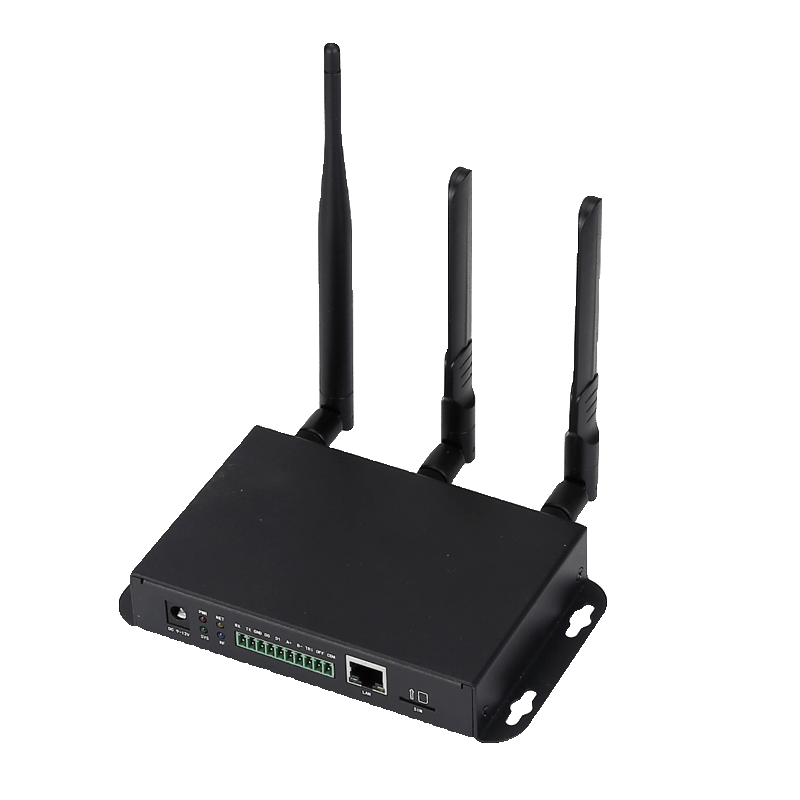

4 Ports UHF RFID Fixed Reader QW-301

Product introduction:

QW-301 UHF RFID fixed reader is designed with low-power and cost-effective reader-writer module, which is characterized by long reading distance, fast recognition speed, multiple types of interfaces and convenient installation. It can be widely used in logistics tracking, commodity inventory, goods sorting, vehicle management, personnel management, asset management, medical system, cold chain management, temperature monitoring, power monitoring, anti-counterfeiting system and production process control.

Product features:

1.Operating frequency 840~868MHz/902~928MHz (can be adjusted according to the requirements of different countries or regions)

2.Support the electronic label conforming to the EPC Global UHF Class 1 Gen2/ISO 18000-6C standard

3.Optimized multi-label inventory algorithm, with the inventory speed of more than 150 labels/second

4.Working in the mode of wide-spectrum frequency hopping (FHSS) or fixed frequency transmission

5.RF output power up to 33dBm (1dBm step adjustable)

6.Support the working mode of command, polling and triggering

7.Support independent and combined inventory of EPC, TID and USER data areas

8.Support RS232, RS485, Weigand, RJ45 (TCP/IP, UDP) and WIFI wireless interfaces

9.Provide demo software and SDK development kit

Product parameters:
