Description

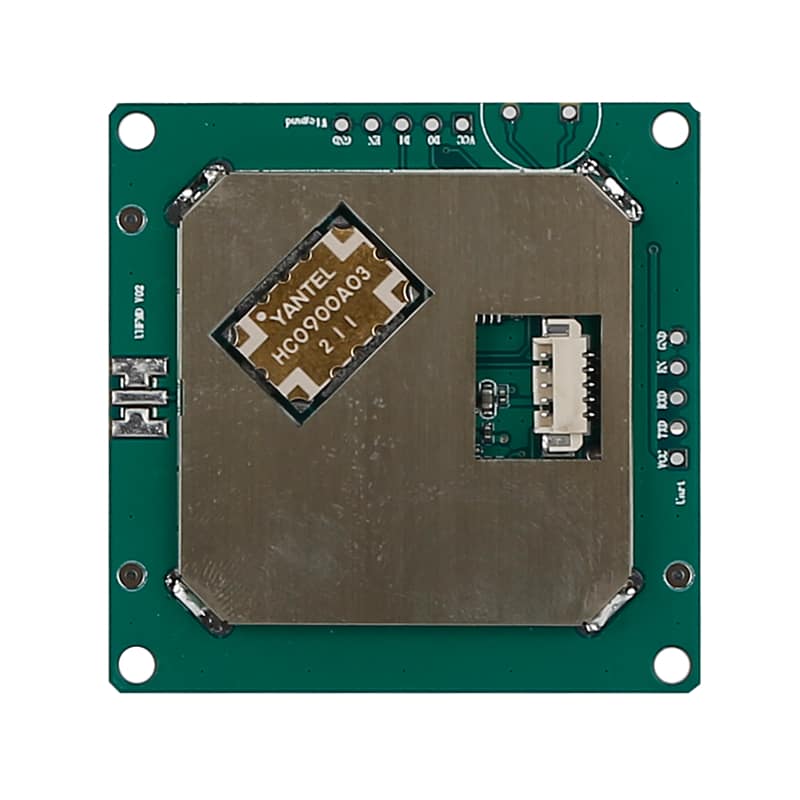

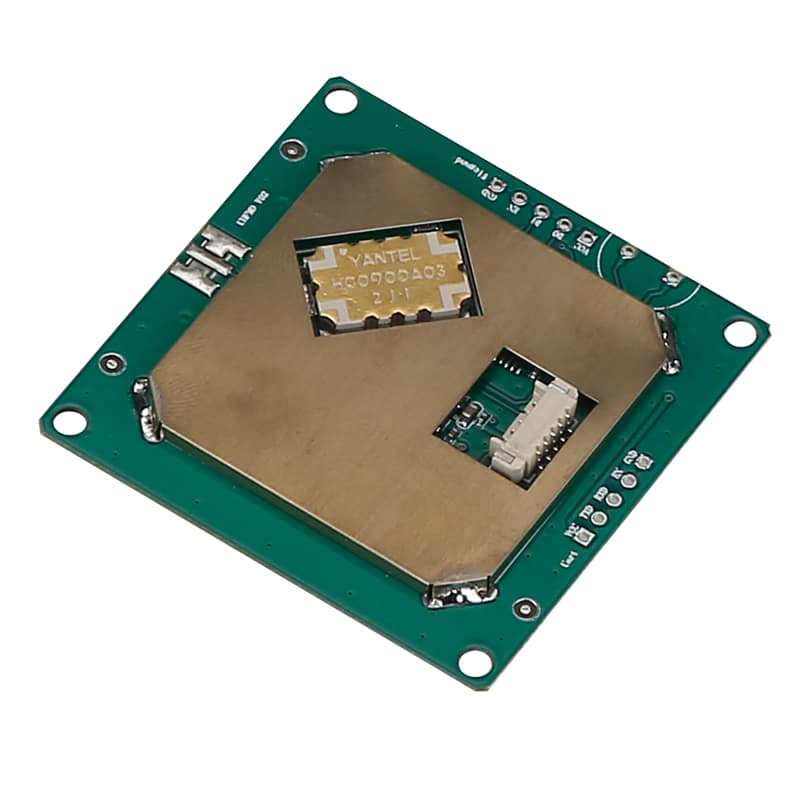

UHF RFID integrated Module QW-9001

Product introduction:

The UHF small integrated module QW-9001 is a low power and high performance UHF reader writer module.

Adopting a high performance and highly integrated RF chip solution, it features low power consumption, high cost performance and compact size.

In addition，It also covers a wide range of application scenarios, including logistics tracking, commodity inventory, goods sorting, vehicle management, personnel management, asset management, medical systems, cold chain management, temperature monitoring, power monitoring, anti-counterfeiting systems and production process control.

Product Features:

1. Design of RF transceiver chip based on low power consumption and high integration;
2. 840 ~ 868 MHz / 902 ~ 928 MHz (can be adjusted according to the requirements of different countries or regions);
3. Support the electronic label conforming to the EPC Global UHF Class 1 Gen2/ISO 18000-6C standard;
4. Optimized multi-label inventory algorithm, with the inventory speed of more than 100 labels/second;
5. Working in the mode of wide-spectrum frequency hopping (FHSS) or fixed frequency transmission;
6. RF output power up to 26dBm (1dBm step adjustable);
7. Support UART serial communication interface (3.3VTTL level);
8. Support Wigan data communication interface;
9. Integrated design without external antenna;
10. Provide DEMO and SDK development kit

Product parameters:
