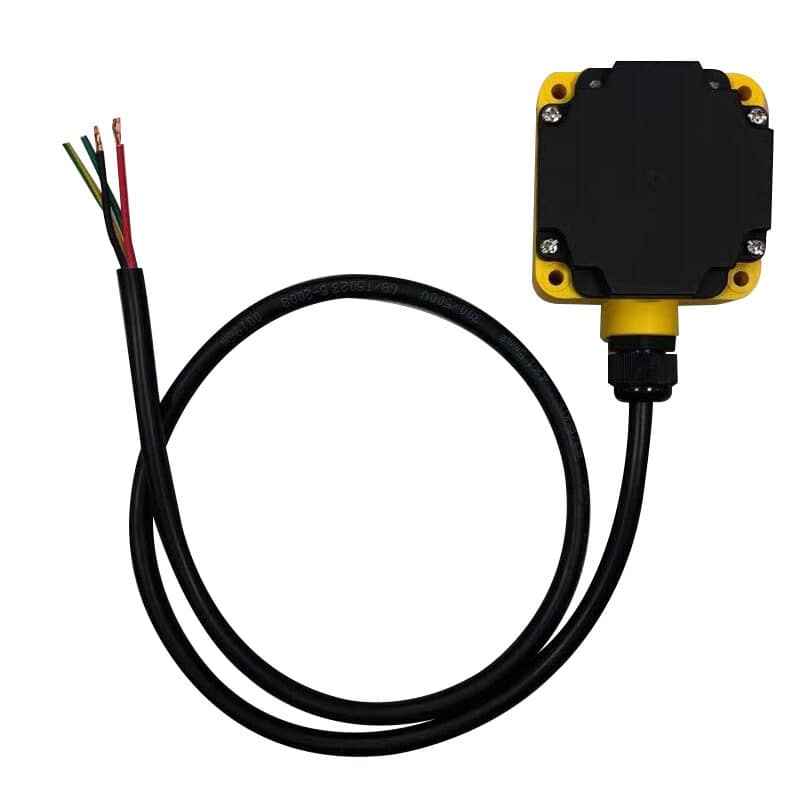

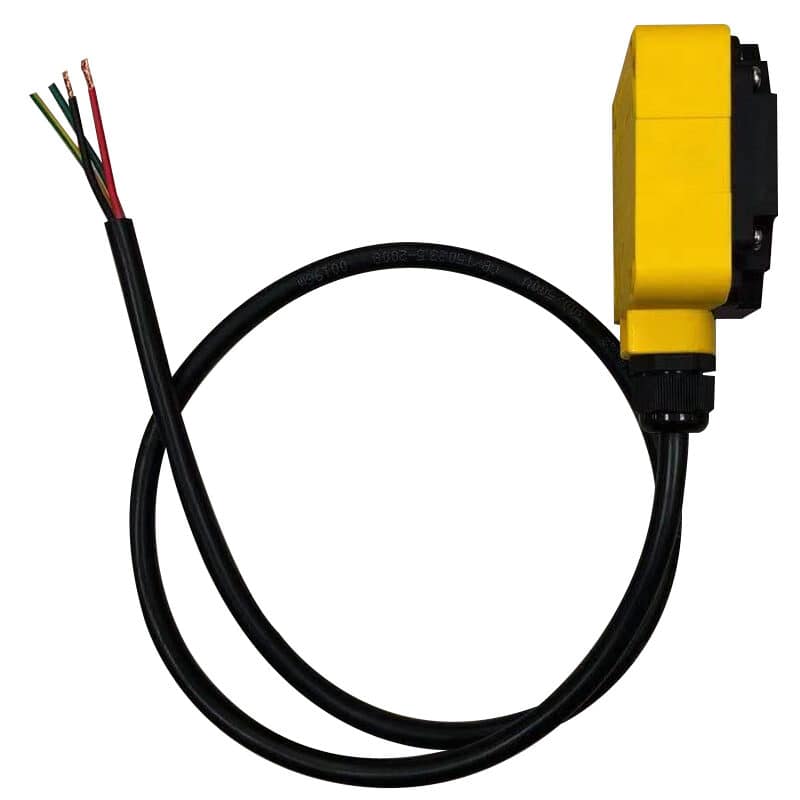

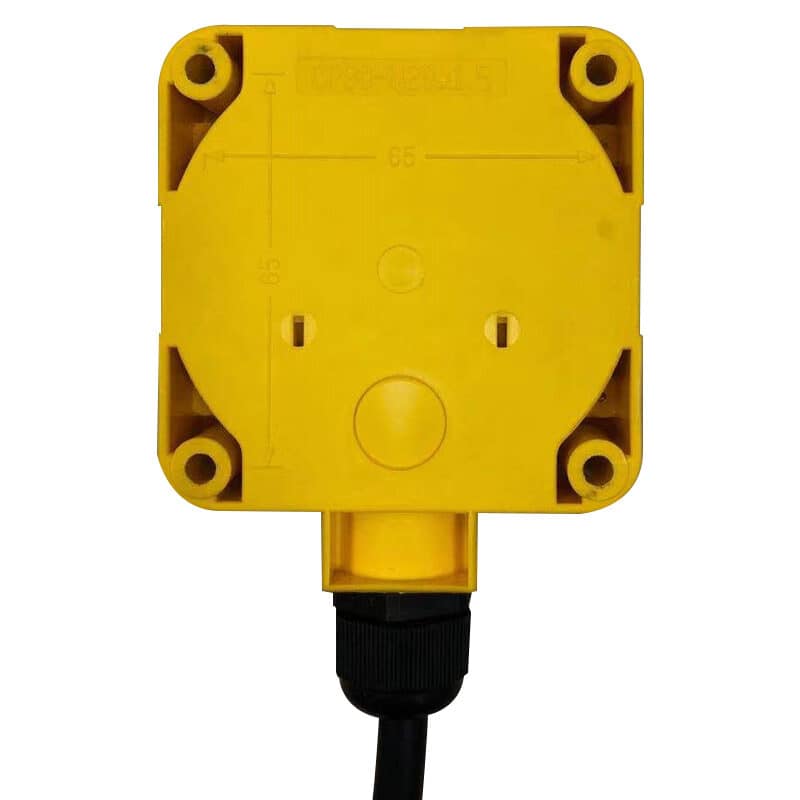

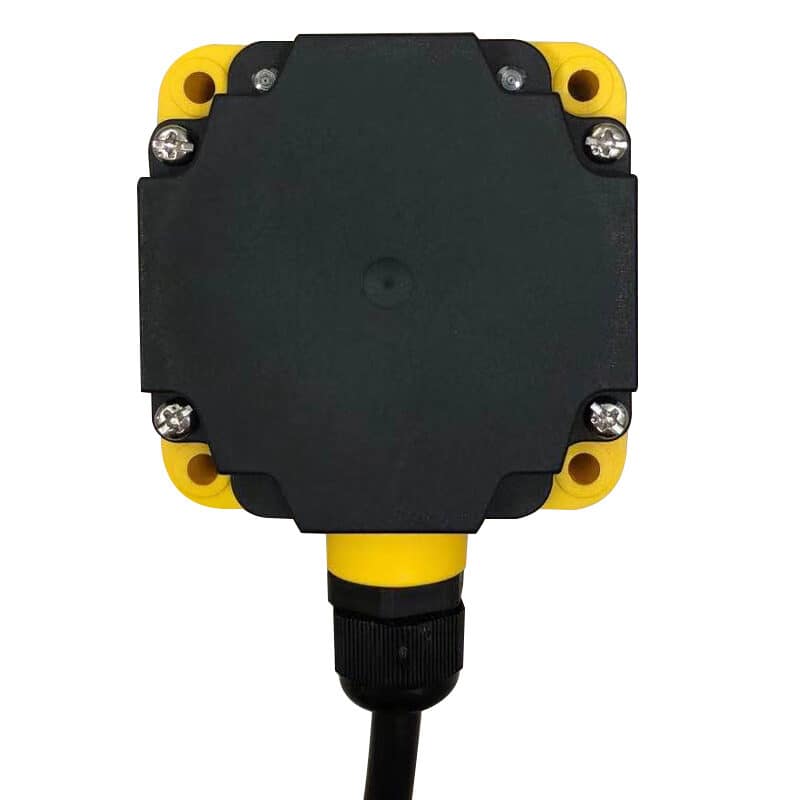

UHF Industrial Integrated RFID Reader QW-103
Description

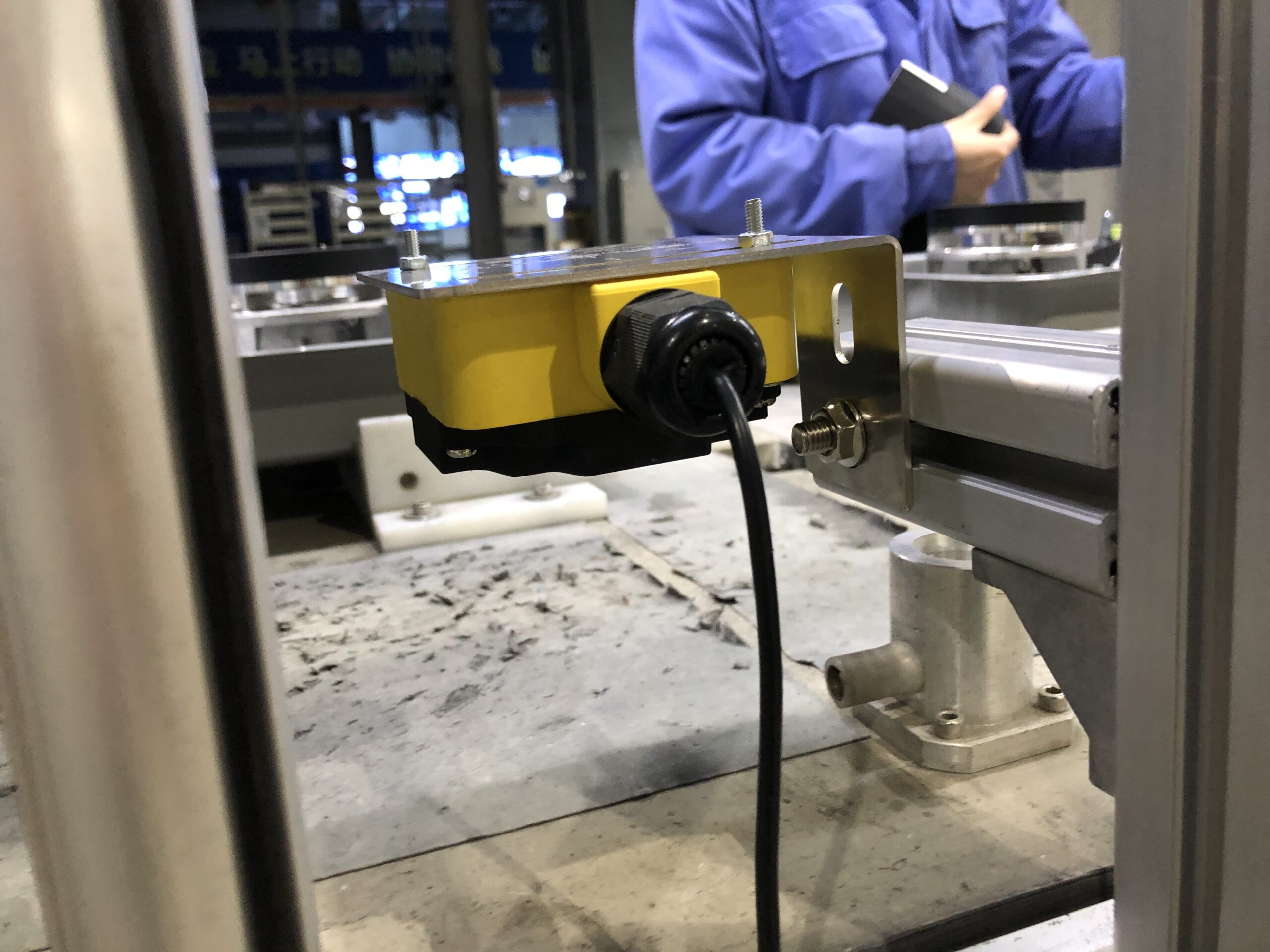

UHF Industrial Integrated RFID Reader QW-103 For Industry Producing Line
Product introduction:
QW-103 UHF industrial card reader is designed with a low-power and cost-effective reader module, which has the characteristics of long reading distance, fast recognition speed, multiple types of interfaces and convenient installation. It can be widely used in logistics tracking, commodity inventory, goods sorting, vehicle management, automatic production line management, asset management, medical system, cold chain management, temperature monitoring, power monitoring, anti-counterfeiting system and production process control.
Product features:
- Small integrated reader-writer based on low power consumption and high cost performance
- Operating frequency 840~868MHz/902~928MHz (can be adjusted according to the requirements of different countries or regions)
- Support the electronic label conforming to the EPC Global UHF Class 1 Gen2/ISO 18000-6C standard
- Optimized multi-label inventory algorithm, with the inventory speed of more than 100 labels/second
- Working in the mode of wide-spectrum frequency hopping (FHSS) or fixed frequency transmission
- RF output power up to 26dBm (1dBm step adjustable)
- Support UART serial communication interface (3.3VTTL level)/RS485 communication interface/RJ45 network interface
- Integrated design without external antenna
- Provide demo software and SDK development kit
- Selectable MODBUS interface data communication
Product parameters:
| Physical parameters | |
| Overall dimension | 80*80*40mm |
| Weight | 300g |
| Color | Yellow/Black |
| Housing material | ABS plastic |
| Environmental parameters | |
| Working temperature | -20℃ to +60℃ |
| Working humidity | 5% ~ 95%（without condensation） |
| Storage temperature | -40℃ to +80℃ |
| Performance parameter | |
| Antenna | Built-in 2dbi antenna |
| Protocol | ISO18000-6C |
| Working Frequency | 902 – 928MHz or 865 – 868MHz (can be adjusted according to the requirements） |
| Working Mode | FHSS or Fixed Frequency Transmission |
| Output Power | 30dBm±1dBm（MAX）0 |
| Reading distance* | >2m (related to label and environment |
| Read Speed | 100 times/1 second |
| Operating Voltage | DC 12V |
| Normal current | <20mA/DC12V |
| Maximum current | <300mA/DC12V |
| IP Grade | IP65 |
| Communication | RS232/RS485/RJ45 |
| Development | |
| SDK | Provide SDK kit to support secondary development. |
